砂石同出

       砂、石同出300tph制砂系統 —— 混凝土攪拌站/300TPH SAND AND AGGREGATE MAKING SYSTEM—CONCRETE MIXING PLANT

•               本系統機制砂顆粒級配和級配類別符合建設用砂GB/T14684-2011建設用砂guojia標準。
•               砂的石粉含量≤10.0，含泥量≤3.0%，泥塊含量≤1.0%。
•               當機制砂MB值≤1.4或快速法試驗合格，石粉含量≤10.0%，泥塊含量≤1.0；
•               當機制砂MB值>1.4或快速法試驗合格，石粉含量≤3.0%，泥塊含量≤1.0%。
•               采用硫酸鈉溶液法進行試驗，砂的質量損失≤8.0%；單級zui大壓碎指標≤25%；
•               砂的表觀密度不小于2500kg/m³,松散堆積密度不小于1400kg/m³，空隙率不大于44%。

•

•               The mechanical sand size grading and grading categories of the system conforms to National Standard GB/T14684-2011 Sand for Construction.
•               Stone powder content of sands ≤10.0; silt content≤3.0%; clay lump content ≤1.0%.
•               When MB value of mechanical sand ≤1.4 or the fast test is qualified, the stone powder ≤10.0% and the clay lump content ≤1.0%.
•               When MB value of mechanical sand >1.4 or the fast test is qualified, the stone powder ≤3.0% and the clay lump content ≤1.0%.
•               When the sulfate solution method is adopted to conduct a test, quality loss of sands ≤8.0%; the max. single stage crushing index ≤25%;
•               Apparent density of sands not <2500kg/m3; loose bulk density not <1400kg/m3; porosity not >44%.

       設備選型叁數表/PARAMETER LIST

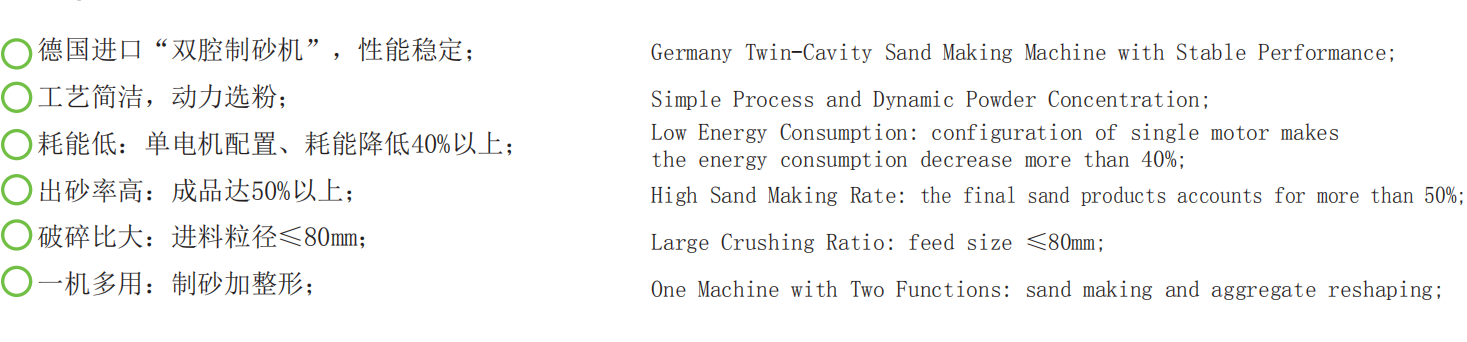

       研發理念/R&D CONCEPT

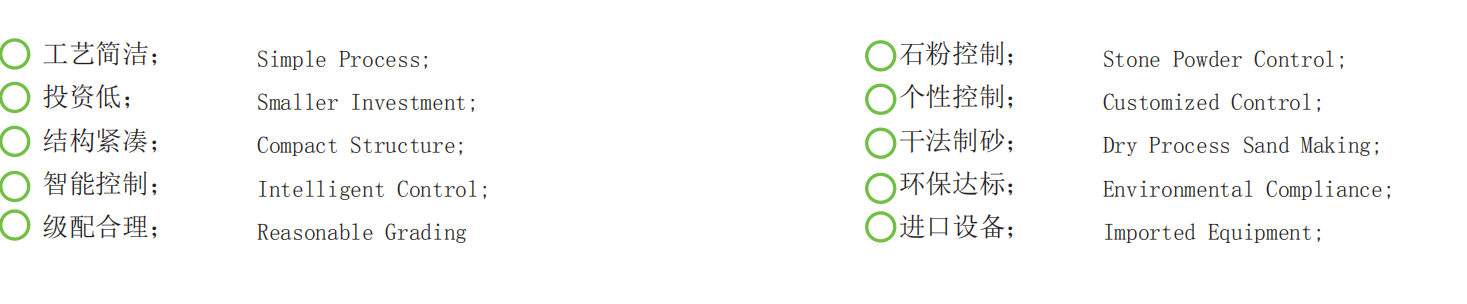

       系統優勢/ADVANTAGES

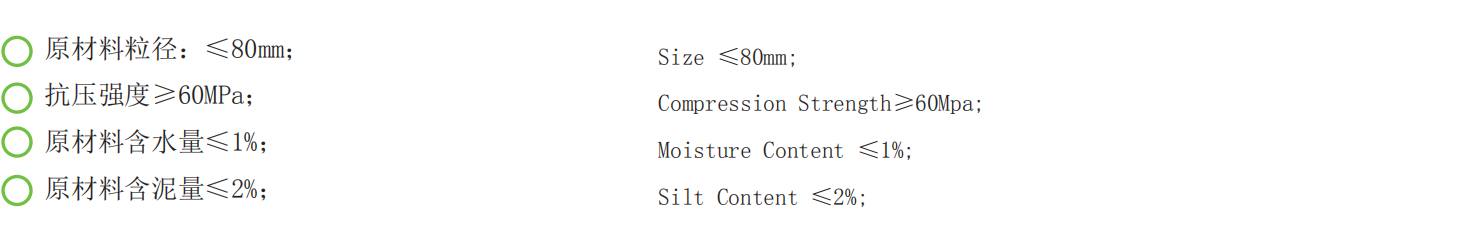

       原材料的要求/REQUIREMENTS ON RAW STONE MATERIALS
